DC Motor Control System

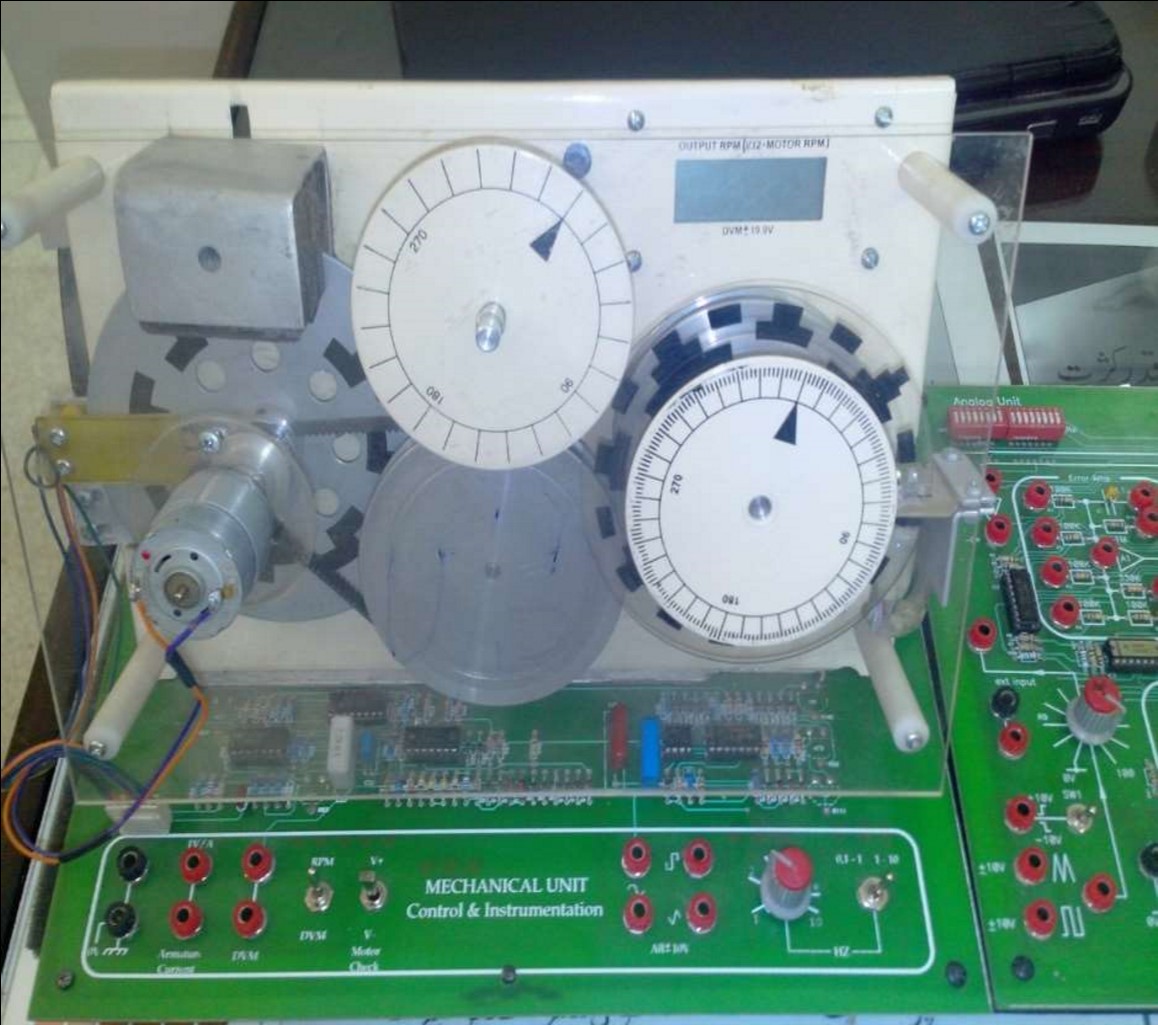

The DC Motor Control System is a multi – Purpose lab equipment which is specially designed for students to get familiarize with the basic concepts of DC Motor operations, Speed control, Tachometer, Influence of step response, Closed Loop measurements, Basic Velocity feedback, System following error, PID Controls i.e. Proportional – Integration – Derivative Controls, Frequency responses, Oscillations and Applicability of theory in real time apparatus.

Specifications

  • 220V AC Input
  • RPM Meter as Display Unit
  • Operational Amplifiers Controls
  • Tachometer
  • Open Loop Motor Control
  • Closed Loop Feedback Circuit and Control
  • Proportional Controls
  • Integration Controls
  • Derivative Controls
